Resolve Color Management (RCM) is powerful workflow tool but using it with Raw footage can be slightly confusing. Learn more in this Insight


A Potentially Confusing Twist To The RCM Workflow

In my overview Insight On Resolve Color Management, several members commented that when working with Raw footage things weren’t working as they expected – namely that the Input Color Space control didn’t do anything to transform footage.

In my previous Insight, I showed the RCM workflow with a ProRes clip where Input Color Space did indeed transform or assign a color space of a clip(s) in the media pool.

Since I was just getting acquainted with RCM, I didn’t dive into other managed workflows including working with Raw footage.

When I read the comments in the previous post about Raw & RCM I was intrigued.

While I had a pretty good idea of what was going on, I needed to do some testing and some more research.

This Insight is to explain those findings in a bit more detail.

Once again a big thanks to my good pal & friend of MixingLight Juan Salvo for listening to my seemingly non-stop ramblings about RCM and Raw workflows &  providing some clarity on some of the finer details of what’s going on behind the scenes in the image processing pipeline.

If you missed Juan’s thoughts on RCM check out that First Look Insight.

It’s Raw Not Video!

As the comments detailed in my previous Insight and my own quick test confirmed, assigning an Input Color Space to a Raw file (.r3d, .ari, .dng) doesn’t do a thing.

But to understand why that it is we need to address a couple of things:

First, as you probably know Raw is just data/information – it’s not video per se.  But the thing is, the colorimetry of a Raw file is a well-known quantity.  Software developers and apps like Resolve know exactly the colorimetry of an Arri Raw, Red or Sony Raw shot.

Because of this, the input color space assignment is simply not needed and redundant.

On the other hand, with a video file, the colorimetry could be anything.

For example, a ProRes file could be in Rec 709, Rec 2020, Log C, or any other color space.  Just because its ProRes doesn’t mean color space and gamma information is explicit.

Resolve does a very good job most of the time of guessing the colorimetry details of video files in a non-managed workflow, but with RCM you have the ability to be explicit about how that file should be handled on input by changing the Input Color Space for any clip(s).

The Input Color space allows you to assign or reassign a color space to a clip based on what’s ‘right’ for a particular clip(s).

Again, with Raw footage because of the availability of SDKs by each camera manufacturer, Resolve knows exactly how to handle that data on input.

So, what happens with RAW in an RCM workflow is that Resolve processes the Raw data automatically for you into your timeline/output color space, and it does this with very high precision preserving all of the Raw image data via a computational transform.

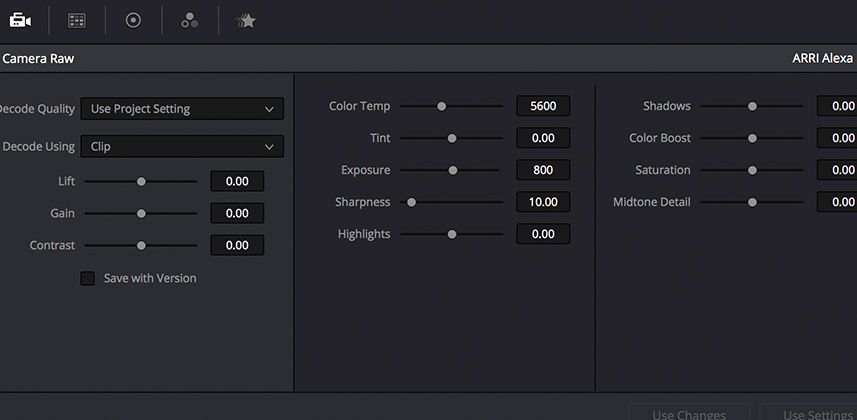

Next, in both managed and non-managed workflows, you have a lot of control over the quality of Raw processing (debayering) and of course, you have access to Raw controls to massage a shot to your liking.

But with some Raw Formats like RED or Cinema DNG where you can assign color space and gamma settings for the Raw footage in the Raw panel, you don’t have those controls (grayed out, or not functional) in an RCM workflow because Resolve is automatically handling that processing for you.

RCM still works with Raw footage and as I’ll show you in the video, it’s just a different approach to how you’ve probably worked before in a non-managed workflow – and just like I mentioned in my previous Insight, you’re under no requirement to work with RCM!

Getting To A Starting Point (RED Is Just A Bit Different)

When it comes to Raw, many colorists just want to get to a good starting point for the rest of their grade.

We’ve talked in other Insights about Raw parameters as being ‘development’ tools.

So maybe you like Red Color 4 and Red Log Film for .r3ds or with BMD DNG files you like working with BMD film or you like starting with a LOG C file for Alexa.

With RCM and Raw, you can get to these starting points quite easily by using the Output Color Space control and by using the timeline color space to adjust how controls feel and how your grades are processed.

For example, if you have an Arri Raw file and you like as a starting point LogC, but you like ‘normal’ REC 709 interaction with the grading controls, simply set up your Timeline Space to Rec 709 Gamma 2.4, and your Output Color Space to Log C and it’s just like working with a ProRes LogC shot.

Furthermore, LUTs can work in an RCM workflow but because a LUT processes the image in the working (Timeline Color Space) you have to exercise a little care (and make decisions ahead of time) about your Timeline Color Space setup – I’ll show you what I mean in the video below.

Finally, RED has always been a bit different – the .r3d controls in Resolve have a lot of power, but RED does a lot of unique things in their SDK that developers – including the Resolve team – don’t have access to.

Remember how I mentioned Red Log Film?

You’ll notice that it’s missing from any of the color space pulldowns (Cineon Film Log is a close match). This is because Red Log Film is unique processing from RED.  There are workarounds, but yes, right now specifically with Red and RCM, there aren’t 1 to 1 equivalents with how you may have processed .r3ds in the past.

Next Steps?

As you can probably tell from this and my previous Insight I’m really excited about the possibilities of RCM, but I’m still learning all of the implications of using it on real-world projects.

So while this Insight hopefully clears up some issues regarding Raw and RCM it’s not meant to be definitive.  I’m very interested in your own experiences.

Please use the comments below to share your thoughts.

– Robbie

Member Content

Sorry... the rest of this content is for members only. You'll need to login or Join Now to continue (we hope you do!).

Need more information about our memberships? Click to learn more.

Membership options
Member Login

Are you using our app? For the best experience, please login using the app's launch screen


Comments

Homepage Forums Resolve Color Management & Raw Footage

Page 2 of 2

  • Robbie Carman
    Guest

    Hi Sam –

    Sorry for the late reply.

    My first question is – is the project only for theatrical release? Second question – do feel like your grade is going to take advantage of the wider P3 gamut? Third question – will you have access to a theater and proper DCI projector before finishing?

    Yes the P3 DCI white point is a bit more green (x=0.314 y= 0.351) and theatrical gamma (black box environment) is 2.6 with peak luminance of 48nits (if the projector is calibrated correctly)

    There are a bunch of issues in trying to use a direct view monitor setup to emulate a theatrical workflow.

    1. Direct view perception especially in the low lights is completely different in a direct view vs theatrical setup. Likewise simply do screen size APL and peak luminance – perceptually – is hard to match when you’re going from a 30ish monitor to a 15 foot wide projection screen

    2. In my experience unless its a really strong grade or animation you’re likely not going to take advantage of the full P3 gamut.

    3. If you don’t have access to a theater before you finalize, in my opinion you’re asking for trouble as perceptually lots will be different.

    Since you’re in a ACES you do have the advantage of letting the color management do most of the work for you. So what lots of people do is grade in BT 709 Gamma 2.4 i.e. broadcast standard and then either:

    1. In the DCP authoring let the DCP software do the proper transforms from 709/2.4 > XYZ. I’ve done this 500 times and done properly the theatrical version looks identical to what I saw on my direct view screen.

    2. If you do have access to theater before you author you I’d probably still grade in 709/2.4 but export all your non-theatrical deliverables from that when approved. Then flip your ODT over to DCI P3 (likely D60 Sim – but check with the theater.) Go to the theater do a trim pass with the ODT properly setup

    There’s a reason big grading companies CO3 etc have grading theaters – they don’t want to simulate. In your case I really do think you’ll have better results doing a normal 709/2.4 grade and in the DCP authoring do the proper transforms.

    Hope this helps.
