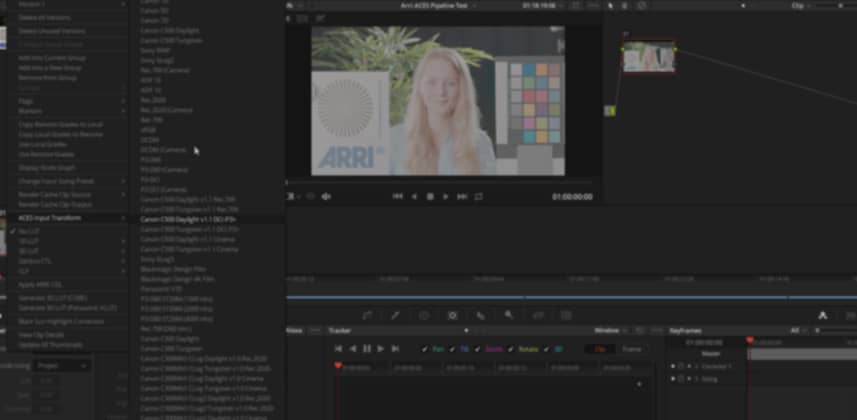

How to set up ACES for ARRI footage in DaVinci Resolve

Is Your ARRI Alexa Mini Color Pipeline Properly Set for ACES?

July 1, 2017

The ARRI Alexa Mini is a great camera - and it color corrects beautifully in ACES. Learn how to confirm your color pipeline (in DaVinci Resolve).

How to use ARRI’s ACES test images (and where to download them)

I’ve recently had several jobs flow through my grading suite that were shot on the ARRI Alexa Mini. The clients all wanted to go with a classic cinematic feel and I found that working with the ACES color space provided the look they wanted from that camera. The images turned out gorgeous (I’m trying to get permission to show a few shots here on Mixing Light and share the breakdown).

Like Dan, I’m still getting used to working in ACES and the biggest problem is having the internal confidence that my color pipeline is solid. If you’ve read Robbie’s ACES series (and you should) then you know you’ve got to keep track of your IDTs and ODTs. And then there’s those pesky LMTs and RRT, which we can’t really control in DaVinci Resolve – but as I set up DaVinci Resolve for ACES, those acronyms keep rattling around in my brain.

Here’s the thing: When you start working in different color spaces you MUST have confidence in your workflow. If you don’t have confidence then when mistakes happen you’ll start to question every choice you’ve made – including those IDT decisions… which sets you up on a wild goose chase. In the end, you’ll chase yourself back into your trusty YRGB color science and have wasted precious time without fully understanding what went wrong.

ARRI has resources to help you build confidence in your ACES workflow

Once I decided to commit to ACES for these several jobs, I jumped to ARRI’s website to see what guidance they offered – to make sure I wasn’t making mistakes. What I found was a trove of information – both about ARRI’s general color science and specifically about ARRI in ACES. They also provide images to help us test our workflow.

ARRI’s Alexa Mini ACES resources:

  • Alexa Mini Worfklow Page: At the bottom of this page is the download for the ALEXA Mini Recording Areas, Surround Views and Framelines PDF. This document lists all the various frame sizes, codecs, and pixel counts. I found it invaluable in helping deconstruct what the DP shot on-set to make sure I set up my Resolve projects properly.
  • Working With ACES Page: Get ARRI’s explanation of ACES and how they engineer the Alexa Mini to work within the ACES framework. But most importantly for this Insight, click on FAQ tab, scroll to the bottom and download the ACES Pipeline Test Pictures zip. You need to register with a User account – but it’s free and ARRI doesn’t spam. Once downloaded, you’ll be able to follow along with this Insight.While you’re on the FAQ, take a closer look at the ARRI Alexa vs. ACES Tonal Response discussion. I’ll look at this in a later Insight, because they demonstrate precisely what I experience when grading the Alexa in ACES – namely, those highlights can get away from you if you don’t keep an eye on them.
  • Alexa Mini Sample Footage: I won’t be dealing with it here in this Insight, but we’ll be looking at this footage to help us understand some of the stranger things when working at some of the Mini’s odd frame sizes and pixel counts.

How to use ARRI’s resources to build your confidence in your Alexa ACES workflow

Member Content

Sorry... the rest of this content is for members only. You'll need to login or Join Now to continue (we hope you do!).

Need more information about our memberships? Click to learn more.

Membership options
Member Login

Are you using our app? For the best experience, please login using the app's launch screen


Homepage Forums Is Your ARRI Alexa Mini Color Pipeline Properly Set for ACES?

  • Scott Stacy

    Great Insight, Patrick. Thanks!

  • Margus Voll

    Very nice tutorial. One thing that i saw was some interlacing which seems a bit off 🙂

  • Daniel E

    I’m a little confused how Red footage is all automatically setup for ACES, but Alexa footage takes an entire manual setup to accomplish? Is this a manufacturer quirk or was it just an example for the tutorial?

  • Willian Aleman

    Hi Patrick and Daniel,

    Patrick, thanks for the informative insight in the workflow when using different file formats in ACES.
    I’m asking the same question myself as Daniel E. If ARRI footage is raw as the RED is, why is the need to apply an IDT to ARRI and no to RED? It’s my understanding that DR does the conversion from raw data to ACES when working in ACES color management.

    Looking forward to ARRI Alexa Open Gate insight.

  • Patrick Inhofer

    In theory, ARRI RAW should NOT require an IDT. This seems to be a bug in Resolve 14 and it’s not automatically applying the IDT to ARRI RAW footage. No manual setup *should* be required – but it does.

    RE: Open Gate Insight – I’m rejiggering that Insight since what I was going to talk about doesn’t seems to be fixed in R14. But I might do this Insight in R12.6 for everyone who hasn’t made the move to R14 yet. And I still need to retest R14 final release, to see how they’ve decided to handle Open Gate footage.

  • time for the part 2, Patrick 🙂
