Can you color correct faster with a colorist control surface?

From the Mouse to a Control Surface: One Colorist’s Diary

June 8, 2017

Are you wondering about buying a Color Correction Control Surface? This article explains the benefits - following one colorist making the transition.


How much faster can you color correct with a colorist control surface?

The year is 2008

Apple Color reigns the world of desktop color correction. DaVinci Resolve on the Mac won’t appear for another 3 years. Tangent Devices has not yet created the Wave and only offers the CP 200 & 100 series panels for Apple Color (retail: $15,000 – $30,000 US). The Avid / Euphonix Color won’t be offered to sale until later that year. The least expensive colorist control surface is offered by JL Cooper, the Spectrum and their newly released update of that surface, the Eclipse.

This is the context of the an article I released on January 25, 2008 “Controlling Apple’s Color: Moving from a Mouse to the Eclipse CX” (yes, I’ve been blogging on this topic for a great many years). In that article (which I’m reproducing below) I document my skepticism at the claims of massive productivity boosts using a colorist control surface. In December 2007 I purchased the JL Cooper Eclipse CX. While waiting for it to arrive I kept notes on how quickly I was grading with a mouse. And then I documented the change in my productivity on the first job I did with the Eclipse.

The questions I asked (and answered):

  • What are the real-world productivity gains using a hardware controller compared to a mouse?
  • Are those gains big enough to justify the expense of the controller (at that time, $6500 US)?
  • How hard is the transition from the mouse to a surface?

But why am I reviving this article out of the archives?

I was reminded of this article this weekend while editing my weekly color correction newsletter, The Tao Colorist Newsletter. Blackmagic’s Mini Control Panel has been making quite a splash on blogs, with many reviewers surprised at how much more quickly they can work with a control surface. And their surprise has surprised me: Didn’t everyone already know this???

Apparently not.

This article was written in an era when control surface options were practically non-existent. The Eclipse was optimized for Apple’s Color (and it transitioned well to DaVinci Resolve). While this article is partially a review of using the Eclipse with Apple Color – at its core it’s about the reality of productivity gains when moving to a control surface if you’ve been color grading with a mouse.

As you read this Colorist Diary, keep one thing in mind… the Eclipse was designed primarily for Apple Color (and Final Touch) users. Button layouts (mostly) make sense to Apple Color colorists (but might seem a little odd to the modern-day Resolve colorist), and in that sense reading this article 10 years later it does remind me of the Blackmagic Mini panel. The Mini panel is also optimized for a single piece of software (but with much deeper integration than any 3rd party panel can hope for).

I haven’t gotten my hands on the Blackmagic Mini panel. Yet. When I do, I’ll write an update to this article to see if that control surface – built specifically for DaVinci Resolve – provides additional productivity gains over the more generic Tangent, Avid and JL Cooper panels. In the meantime, I hope you enjoy this trip in the Way Back Machine where the concerns of yesterday are just as relevant today.

Note: Most of the links in that original article are broken, so I’ve updated those links to maintain the spirit of the article – as best I can. I’ve also removed some of the more specific operational details of the original article to keep this version more focused on my initial impressions of moving from the mouse to a control surface. I’ve also retained some amusing (to me) commentary about moving timelines between FCP and Color – a reminder of how long we’ve been suffering these problems and why Resolve 14, with its emphasis on Collaboration and the Edit Page, is so important.

Enjoy! And as always, share your thoughts, questions (and reminiscences) in the Comments below!

-pi


Controlling Apple’s Color

From Mouse to the EclipseCX Control Surface

January 25, 2008

What follows is a daily diary I kept of my first experience using a JLCooper EclipseCX control surface. I’m trying to answer two questions: Is Color a better app with a control surface and will it, as some professionals claim, double my output? While doing so I’ll give a review of the JL Cooper EclipseCX and how well Color interfaces with it. I’m using a diary format hoping that readers will benefit from watching me make this initial transition from color-correcting with a mouse to working on a dedicated colorist control surface.

Introduction

When Color was first released by Apple, it made quite a splash. It’s a software-based color correction application and was designed to appeal to working professional colorists (or those hoping, one day, to become one). Upon introduction there was no drought of opinions on how well Color succeeds (or doesn’t) at its task. One frequent line of comment had to do using Color with an outboard control surface – something considered essential for professional colorists. I’d frequently read professionals make many claims about using Color and control surfaces:

“Color is useless without a control surface”

“Color is an entirely different app with a control surface”

“You’ll grade twice as many shots with a control surface than with a mouse”

I happen to know that the first statement is entirely false. I’m living proof not only that Color can be mouse-driven – a career can be made while doing so. Of the other two statements, I was never quite sure how much those were hyperbole or fact. So I’d kept a skeptical, though envious, eye on product developments for this niche of outboard gear (here’s a recent roundup).

To quickly summarize, the field serving Apple’s Color is currently split between Tangent, a manufacturer of very high-end color-correction surfaces, and JL Cooper, a manufacturer of a broad range of mid-priced control surfaces. Tangent panels are more stylish and polished… but twice the price.

Prologue: JL Cooper Eclipse CX

Since I couldn’t justify the price of the Tangents I’d kept my eye on the more affordable JL Cooper products. Specifically, I had been in contact with JL Cooper’s Danny O’Donnell who kept me abreast of their redesigned control surface which was announced at NAB 2007 – the Eclipse CX (additional Eclipse info here). But at $7,000 I had trouble justifying its cost – having never used one. When I finally told him in September of 2007 that I was ready to order a panel, I also said I was going to order the less expensive older model – he countered by offering me the new EclipseCX at wholesale, knowing that I’d eventually do a write-up such as this (since I had previously blogged about it). With this significant price cut the decision became a no-brainer and I quickly jumped on his offer.

12 weeks later, just as the Christmas holiday approached, I got an email notification that the unit had shipped.

I was joyful (understatement).

A week later, a box arrives…

The JL Cooper Eclipse CX Colorist Control Surface
The JL Cooper Eclipse CX Colorist Control Surface (click to enlarge)

On January 1, 2008 work begins…

Day 1 – Setup

Traffic is a breeze getting into the city this morning. New York must be hung over from New Years Eve. I hope this bodes well for me.

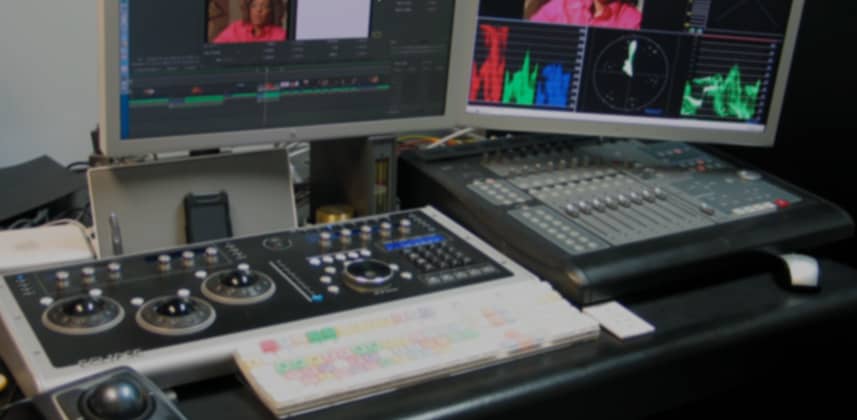

My editing / grading suite, in 2008
Time for a smaller audio surface.

I struggle a bit with how to physically place the Eclipse on my desktop. The Tascam is rather large and doesn’t share well. I had half-expected this and finally get it worked out. The Eclipse communicates over the local Ethernet network. The instructions say it can’t go into the second ethernet port, it must communicate via the primary ethernet interface. I plug the Eclipse into the LAN. Following the instructions I give it a unique IP address and enter network settings by punching the numbers into the numeric keypad. I then download and install the “Beta Ethernet” software for customizing the panel to work with Color and FCP.

After launching Color I realize I’m in trouble.

Color isn’t talking with the Eclipse. After a while I’m able to get JL Cooper’s beta software to see the panel – but within Color? It’s a no go. I remember a colorist telling me that Color natively communicates with the panels. Clearly I’m doing something wrong in setting up the customization software so I delete the preference files for the beta software. I relaunch Color. I program the IP address of the Eclipse from within Color (by this time I’ve changed the IP address a half-dozen times as I try to troubleshoot).

Success!

Stupid me. If I had just gone straight into the Color I would have saved myself 2 hours of troubleshooting. I print out the section of the Color user manual that specifies what each of the buttons do and I start mashing the keys, spinning the rotary knobs, working the triple-trackballs, and playing with the transport controls. It all seems straight-forward. Transport is about as good (maybe better) as any I’ve used since my online days.

Two buttons have me confused: “speed++” and “Inch”

Eclipse rotary encoders
The Speed++ control

Since they’re located above the transport control I’m assuming they throttle-up and throttle-down transport. A quick test shows that’s the case.

Everything’s working. It’s getting past 6pm so I decide to wrap it up and hope I can start color correcting straight-away tomorrow.

Day 2 – Stuck in FCP

Dang. No Eclipse today.

This project has more speed changes than I’ve seen in years. Nearly half the shots in this 80 minute doc are fit-to-fills. This is almost always a no-no with Color. But the Release Notes to the new update to FCS2 (Color 1.0.2) state that Color now correctly handles constant speed changes. Well, this seems as good a time as any to test that theory out. But the variable speed changes will still have to be rendered and replaced. By the time I get this done (as well as a half-dozen other sundry issues) and create a neat textless timeline 6 hours have passed. We started at 2p. Time to wrap it.

Day 3 – Mouseless (sort of)

I’m in early. We have a tight deadline and render times are going to kill me. But first, I need to watch this show. And then it’s starting to feel a lot like yesterday – more prep, no Color’ing – as I break the show into 3 Reels, and test the roundtrip for each reel. There are a few problems to fix (embedded Motion projects, mostly). By mid-afternoon I’m ready to rock and launch into Color to start color correcting.

The transport controls take some getting used to. Using the “Next / Previous” buttons, I can get ahead of the software and it doesn’t take my commands. Better is: Press… pause a moment… Press… pause a moment. I think the keyboard is faster for those commands. Jog is much better than the keyboard. Especially with that “Speed++” button. I can quickly jog across several shots and get a nice sense of shot-to-shot balancing. Easier than dragging the mouse across the timeline. The “Inch” button doesn’t seem that interesting to me. With Speed++ off the jog control feels just fine – I don’t see a need to go into “Inch” mode. Jog works well but Shuttle? Doesn’t do anything. Guess I’ll have to test that in FCP (one day).

Color correcting with the trackballs and contrast rings is different. Very different. I’m finding the controls feel too slow. I go into the Color preferences and change the sensitivity from 1 to 2. Better. I do wish the contrast rings had a separate sensitivity control. I’m finding that for big corrections I’m really spinning those rings. And the rings are machined pretty tight. By the end of the day I’m wondering if I like the rings at all.

At the top of the panel on the left side are where the “Advanced” controls in the Primary and Secondary rooms live. These are the Gain/Gamma/Lift for the individual RGB channels. Also, while in the Secondary room this is where you’ll find controls for Masks and the HSL qualifiers. By the end of the day I’m still not used to quickly finding these controls, as they are listed with generic buttons labelled “Page 1, Page 2, Page 3, etc..” But when I do find the page I want, I find them much better than the mouse – mostly because I can tweak two of these controls at a time. Interestingly, you can also move the position of your masks using the left-most trackball. But man, do you have spin that trackball! Anyone remember Missile Command? That’s what it feels like I have to do to make that mask move… spin, spin, SPIN.

One thing conspicuously missing – the Master Gamma/Gain/Lift controls are nowhere to be found. I think it’s a mistake/bug because three of the rotary controls are blank on Page 1. I’ve got to think they’re supposed to live there. Makes perfect sense, yes?

Using the Page buttons on the top right of the panel is a real boon. Each Page jumps to a specific room. Even better, they’re clearly labeled by an LED display. Man is that faster than the mouse.

At the end of the day I remember what a colorist recently told me was his favorite feature of control panels, press play – then color correct in real-time with moving footage… and it works! Very very nice. But it’s now the end of the day. Can’t explore any further. I have gotten a decent amount of work done, even as I was learning this new tool. Considering I started color correcting a few hours later in the day than normal, I got done what I would normally get done in a full day while using the mouse.

Am I faster with the control surface? I’m not sure yet. I had a lot of material to get through and I wasn’t spending as much time on each shot as I might normally do… it’s a tight deadline.

Day 4 – New Discoveries

Today I expect to put in a normal 8-hour day. I need to get through another 20 minutes of material. This is a very cutty show so I don’t have time to get bogged down on any one shot. But there are interview shots scattered throughout this show and I’m determined to work in the secondaries and “re-light” those shots to help them pop a bit more.

I also discovered a new feature of the “Speed++” key. After scrubbing through the timeline with Speed++ enabled – I forgot to turn it off and I adjusted a rotary knob for the Red Gain… in one full turn of the knob the gain went through the roof! Whoa… cool. This button also effects the rotary knobs. Suddenly these things have become a lot more natural to use. With “Speed++” engaged the knobs move the way I want, giving me a full range of control. With “Speed++” disengaged the rotary knobs are in a Fine-control mode. The Eclipse has suddenly become much more powerful and natural feeling.

The Eclipse Trackballs
Each trackball has its own pair of reset buttons. Upper Left: The missing Master Gain/Gamma/Setup knobs

Another nice feature I’m discovering, the R1 and B1 buttons above each of the trackballs… In the Color interface, doing a Reset simultaneously resets both color and contrast adjustments… together. On the Eclipse, R1 and B1 break them apart, with one resetting color adjustments and the other resetting contrast adjustments. On the negative side, the buttons are reversed from the order they appear visually on the screen – making the reset function a bit tricky. After a few hours my mind is re-wiring itself to handle the reversal between what my eyes see and my fingers must press.

I’m also discovering a potential hardware problem… contrast and color adjustments seem to reset themselves randomly without me touching anything. After an hour our two I realize it’s related to my resting a hand on the surface of the panel. A firm finger tap on the surface confirms… too much pressure and a button gets activated. It takes me another full day to change my habits to prevent this from happening – but it’s annoying because it’s still a problem that occurs once or twice a day.

There’s another feature that I’m still not used to – copying grades to the Memory and them pasting them back onto shots. Color provides for 5 memorized grades. The Eclipse only supports 4 memorized grades since it uses the “Bank 1-4” buttons. There’s a fifth “Assign” button that toggles between Copy / Paste / Switch. I haven’t yet figured out “Switch” and I’ve already Pasted when I should have Copied and Copied when I should have Pasted. At the moment I’m chalking it up to a learning curve. We’ll see how I fare by the end of this job. I’m not happy that I’ve lost a Memory Bank.

End of Day 4 – Initial Thoughts

I’ve been using this panel for a day and half now. Clearly there are some things I really dig, others I’m not sure about, and a potential hardware-related issue. Does Color feel like a completely different app yet? Maybe. Am I more productive? It seems so. I finished Reel 1 and started into Reel 2 today. About 20 minutes of material. That’s the same as the best I could accomplish in a very long session using the mouse. More impressive because I’ve followed through on the previous day’s promise to make sure the interview footage is re-lit – and I didn’t loose any time doing so.

I’m still fumbling a bit, deciding when to use the mouse / keyboard and when to use the panel. For instance, while the panel supports the manipulation of Masks using the rotary knobs, using the trackball for positioning is tediously slow… and once I grab the mouse for positioning, it’s much easier to use it to also control softness and rotation.

I have been grading with playing footage most of the day. It’s a great timesaver. I’ll start doing the initial grade while the picture is playing and after it’s looped once or twice I’ll pause it on what I know is a representative frame and finish the grade. I’m almost never getting surprised anymore from the iris changing mid-shot and me missing it.

Day 5 – Getting Back On Schedule

My deadline still looms. After color-correction I have another two days of finishing to do. Render times have proven to be a beast as 50% of the footage is 1080i and I’m using a Dual 2.5 G5. I definitely need to upgrade to a Mactel next month. I’m fond of this CPU, as it’s seen me through quite a bit of growth – but now, in an HD world, it’s holding me back.

More to the point, today is Saturday – I need to get a lot of work done today and tomorrow to make sure we stay on schedule. I’m walking into today’s session very comfortable with the control surface. Today is showtime.

About an hour into the session I make one last major discovery: The “Speed++” button also works with the trackballs! I don’t have the words to describe the difference it makes. Large corrections can be made quickly. Looks can be discovered, tossed, re-engineered, and then (turning off “Speed++”) fine tuned. I quickly jump into a Secondary, enable a mask… it is also turbo-charged with the Speed++ control. No need to go back to the mouse – with footage playing back I can easily reposition the mask, adjust rotation and softness, and do it with relatively small turns of the knobs and moves of the trackball. Excellent.

6 hours into the session and I’ve finished Reel 2 – including taking time to relight all interviews. Although by halfway through the day I’m seeing advantages of scale and can re-use many of the saved interview grades. Still… by the end of this 8 hour day I’ve color corrected almost 40 minutes of the show – nearly doubling my best output with a mouse during a 10 hour day. Not only am I back on schedule. I don’t even need to color correct tomorrow. I’ll start rendering Reel 2 tonight and come into the office for 20 minutes on Sunday to finish rendering out Reel 1.

Even better… the contrast wheels on the Eclipse feel like they’re opening up on me. The Mids wheel is definitely spinning much easier now. It requires less effort to turn it. I’m digging this control much better and looking forward to when the Shadows and Highs wheels loosen up as well. Funny though, a colorist friend of mine took a look at the panel. He liked the tighter feel. Go figure. I know it’ll take a lot longer for the other two wheels to free up, since the Speed++ button doesn’t require me to pound on them nearly as much as I had been.

Day 7 – Wrapping Up

I finish color correcting Reel 3 this morning. 15 minutes in a few hours. I’m amazed. And a bit dazed. I spent some time yesterday and this morning analyzing how I got so much done in so little time.

Is it as I heard? With a control surface does Color feel like a different app?

I was definitely in a different kind of zone on Saturday. I spent far less time looking at the Color interface, instead focusing on the reference monitor and scopes. Nor did I sacrifice quality for that speed. The ability to play back while grading helped keep me from having to re-do my work.

Most importantly, once I starting getting a feel for the layout of the controls of the Pages buttons – I rarely had to look down at the buttons, except to see if the Speed++ was turned off when I didn’t want it. And that’s where the speed comes from. I could navigate rooms, dig into otherwise buried tabs, manipulate keyframes, and perform copy/paste operations while barely taking my eyes off the picture.

This is the power of an outboard control surface. It allows me to shift my attention from the interface and onto the picture. The EclipseCX makes it feel like the Color interface has been made tactile.

Of course, I have a total sample of one job. This is my first show using this panel. But even if some of my speed gains are from working quickly with a tight deadline – I haven’t been working that quickly. I’m impressed.

Conclusion

Have I mentioned that I really dig control surfaces? The EclpiseCX follows smartly in that tradition. Leaving the keyboard for things like text entry, it (mostly) pulls out all the useful commands and puts my focus back where it belongs – on the picture.

My only criticisms have to do with Color’s default settings for the JL Cooper (which is how the majority of users will interface with it). Important keyboard commands are missing, as well as the missing Master Gain/Gamma/Lift controls. Moving quickly between shots using the transport buttons is too unresponsive. When copying and pasting grades there are too few buttons chasing too many controls (which, if you ask me, should be placed on the F keys, using the shift button for Copy commands and unshifted for Paste). Keyframe management is clunky and should work better if placed elsewhere on the panel (M3, M4, M5 buttons?). Overall, I think the Color team really should to take another look at their control surface support for the JL Cooper and tidy things up a bit.

JL Cooper’s custom software looks interesting, but is quirky. Over the next few weeks I’ll see if I can get it up and running. It offers the promise not just of customizing it with Color, but getting it to communicate with Final Cut Pro as well… If I manage to get that working, definitely look for a companion article covering those experiences.

The hardware issue with the reset buttons activating randomly has been a hassle to deal with. I spoke to a colorist who also has the Eclipse CX, he’s not having the same hardware problem – it looks to be a problem unique to mine… after contacting JL Cooper they have me sending it to them for warranty repair.

Overall the Eclipse CX control surface is a thrill to use. I don’t know that Color feels like a completely different app with a control surface – I think there’s some hyperbole in that statement. But the productivity gains are enormous. By pulling the Color interface out from a 2D display and out onto a real world controller a Color’ists eyes can focus where they should be – on the reference monitor. Accessing menu items, shifting between tabs, and changing multiple parameters simultaneously is now an exercise in muscle memory – my eyes are watching one thing while my hands are doing something else. That’s a difficult feat when relying solely on a mouse.

Having been uninitiated to colorist control panels, at $7,000 I was reluctant to buy into the Eclipse. I service more modestly budgeted series, docs, and indy productions. Every dollar I spend needs to scream in usefulness. The EclipseCX screams. Knowing what I know now, I would have loosened up those purse strings sooner.

A control surface is a competitive advantage. Yet, at $7,000, it’s a bit painful to shell out that cash. Perhaps for someone like me, a boutique owner, it’s priced above my pain point. A panel priced in the sub-$4,500 range should easily fly off the shelves. At a larger facility where several offline/online rooms are feeding a Color’ing suite, it’s a must-have.

Of course, there is one downside – with these massive productivity gains I’m going to need a bunch of new clients to fill my schedule. With a typical session going from 2-5 days down to 1-3 days… .

In the meantime, if you know someone looking for color correction work – my schedule has suddenly found some new holes in it…
